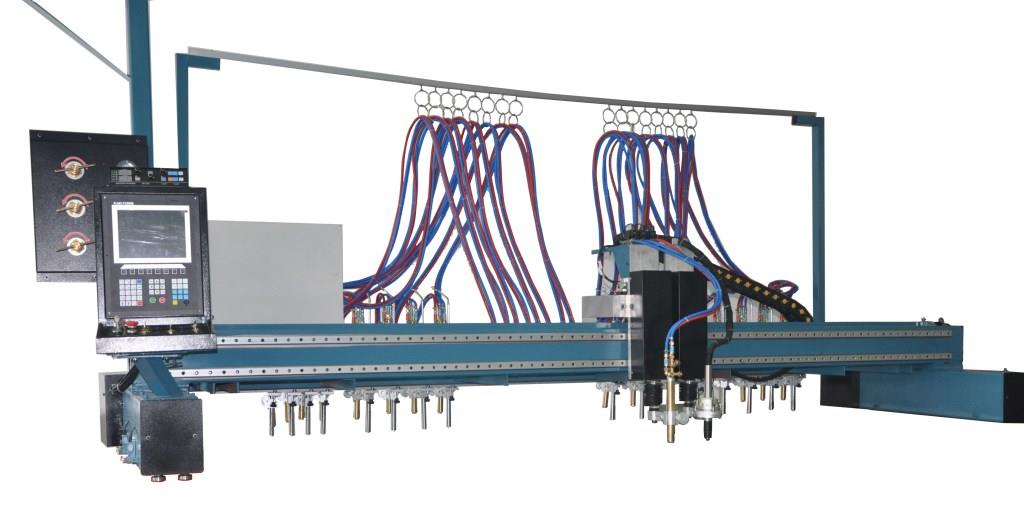

This series gantry cutting machine has a very compact structure to provide a good stability and rigidity to achieve a high cutting precision.It is widely applied to the steel structure and ship-building and other industrial fabrication filed for steel plates cutting,and already got good recognize by the users for its good cost performance.
Products Features:
- With compact structure, good stability and rigidity to achieve a high cutting precision;
- Effectively improve the cutting quality and speed, lower the cost;
- Widely applied to the steel structure and shipbuilding and other industrial fabrication filed for steel plates cutting.
Products Parameters:
|
Specification |
Parameter |
| Tracking Range | 3000-4000mm |
| Track’s Length | Upon Customer’s Request |
| Cutting Type | Flame or Plasma cutting |
| Number of Cutting Torches | Upon Customer’s Request |
| Flame Cutting speed | 50-750mm/min |
| Plasma Cutting speed | Depend on the power used |
| Idle Running Speed | 6000mm/min |
| Vertical Adjustment | 200mm |
| Steel Plate thickness | 6-170mm |
