This machine is sepcially developped for cutting milter elbows on pipes in Oil projects or other projects involved with long distance pipeline construction.

Main Technical Parameters



Specifications	Paramaters
Model No.	TP1-PSK
Main frame size	420×400×760mm
Main kit weight	22Kg
Control system	NC
Rated power	300W
Power supply	220vac/50Hz
Surface finish	12.5μm
Cutting accuracy	<1mm
Cutting speed	0-800mm/min
Packing size	507×460×800mm

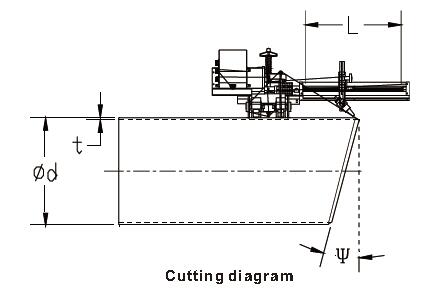

Application Range：

d:325mm-1219mm
ψ:Arbitrary value
L:200mm
