series pipe NC cutting machines are smart and light pipe saddle-holes cutting machines developped by SUNBOW company.They are cutting equipment combining quick working, numerical control, precision and super-miniaturization together.These machines are used mainly for cutting saddle hole on pipes and tubes in steel construction, pressure vessel industry and petroleum and gas & oil pipeline transportation fields.



Products Features：

1. Smoothly,accurately cut and bevel
2. Light and portable for more occasions working
3. Positioning by laser to achieve precise cutting process
4. With remote controller,highly intelligent but simple to operate
5. With magnet base,easy to install and removal by only one man
6. Build-in program system in the controller,no need tie in  with CAD skill
7. Cutting methods could be flame cutting, plasma cutting and water jet cutting



Products Parameters:

Oreder No.	Model No.	Functions	Bevel Angel	Cutting Cource	Vertical adjustment	Holes Range	Weight
2-101-0001	MAK-11	cut orthogonal holes on pipe-head	±45°	Oxy-Acetylene	0-150mm	50-300mm	22kg
2-101-0002	MAK-12	cut orthogonal holes on pipe-head	±45°	Oxy-Acetylene	0-180mm	50-600mm	30kg
2-101-0004	MAK-14	cut orthogonal holes on pipe-head	±45°	Oxy-Acetylene	0-180mm	50-1200mm	40kg

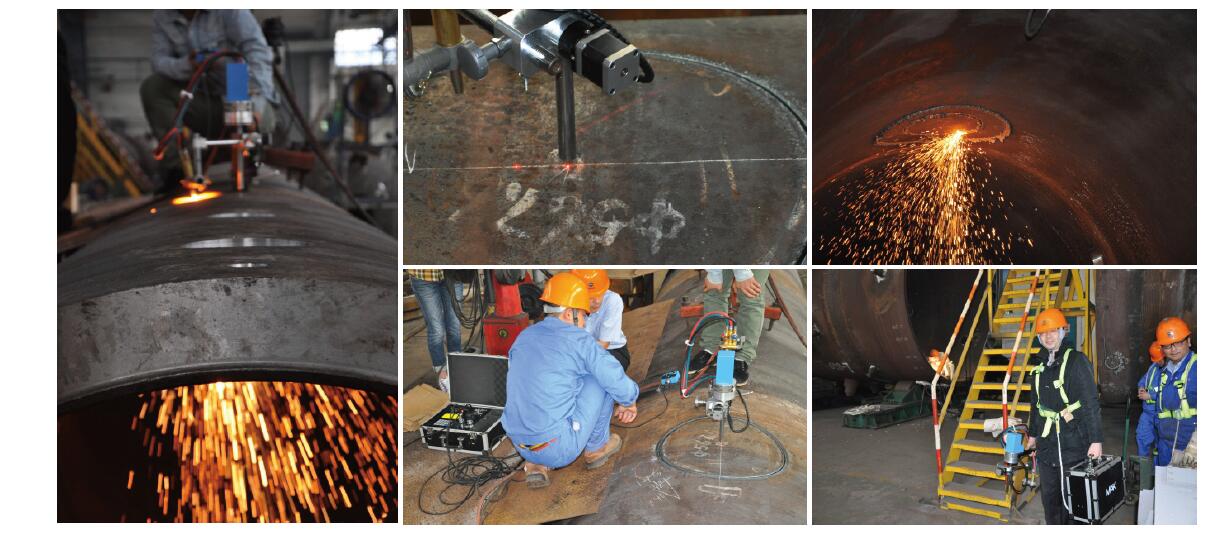

Application Cases：
