Articulated Cutting Tools-ST

small pipe cutters Articulated Cutting Tools

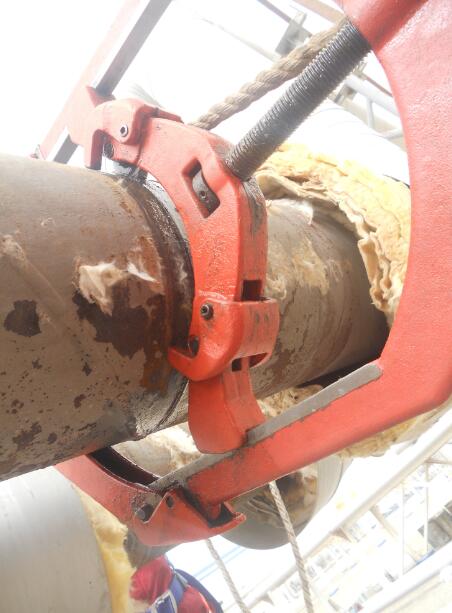

ST424 Heavy-duty Articulated Pipe Cutters (Single cutter wheel)
* Could be used in fire-forbidden environment;
* Blades can be handled in 360 degree by worker
* Wide roller design,keept the same track while cutting
* Keep neat cut

ST468 Hinged Articulated Pipe Cutters (Four cutter wheels)
* Could be used in fire-forbidden environment;
* Easy to set up and take down
* Guide apparatus design,keept the same track while cutting
* Keep neat cut
* Four cutter wheels, improve the cutting speed
* Could rotate within 110°to 130°,could work in narrow space.

Products Parameters and Selection Table：

Order No.	Descripition	Model No.	Blade No.	Blade Qty.	Cutting Diameter		Weight(kg)
Order No.	Descripition	Model No.	Blade No.	Blade Qty.	OD (Inch)	OD(mm)	Weight(kg)
2-001-0015	Heavy-duty tube cutters (Single cutter wheel)	ST400	2-001-0016	1	1/8-2	10-60	3.2
2-001-0006	Heavy-duty tube cutters (Single cutter wheel)	ST424	2-001-0009	2-4	1/8-2	60-114	7
2-001-0011	Hinged Pipe Cutters (Four cutter wheels)	ST404	2-001-0013	4	1/8-2	60-114	6
2-001-0001		ST466	2-001-0007	4	4-6	114-168	13
2-001-0002		ST468	2-001-0005	4	6-8	168-219	15
2-001-0003		ST472	2-001-0005	4	8-12	219-324	19

Blades Selection Table：

Order No.	Model NO.	Size(mm)	Matched Cutter No.	Qty(pc)
2-001-0005	F-72	49x19x9.7	2-001-0002 2-001-0003	1
2-001-0007	F-66	41.5x19x9.7	2-001-0001	1
2-001-0010	F-24	41x28.5x9.6	2-001-0006	1
2-001-0013	F-04	41.5x19x8.7	2-001-0011	1
2-001-0017	F-00	31x19x9	2-001-0015	1
