Hydraulic pipe cutting and beveling machine used after fixed on pipe with provided double chains. The cutter climb around pipe and cutting pipe by rotating blade with running handle on then cutting and climbing automatically. Hydraulic driving, explosion-proof, can match with beveled angle blade to have beveled fracture face, no need electric power supply.



Products Parameters：

Specifications	Paramaters
Model No.	PAK-4
Cutting Capacity	DN 200-3000mm
Cutting Speed	Adjustable from 0-90mm/Min
Cutting thicknes	≤32mm
Milling cutter speed	125R/min
Working power	10Mpa
Bevel angle	45°
Feed Method:	Positive, nonslip chain drive
Net Weight	38kg
Flow rate	35L/Min
Work Speed	3600r/min
Motor power	7.5KW
Pressure	10Mpa
Pump flow	12ml/min
Driven Way	Petrol hydraulic
Engine prower	13HP
Net weight	80kg

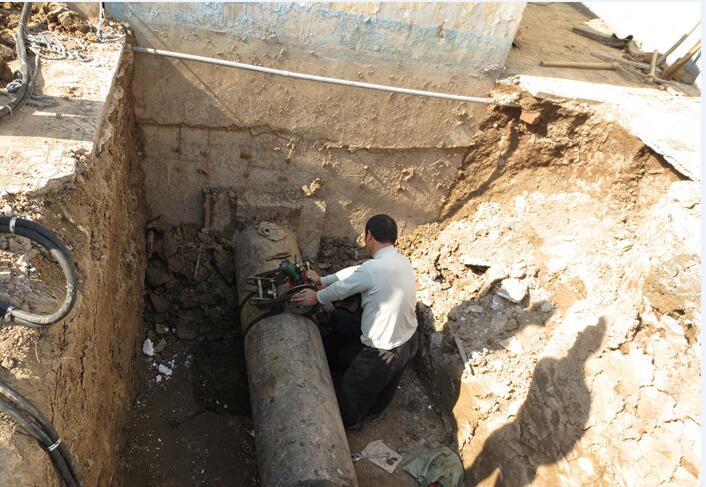

Application cases：
